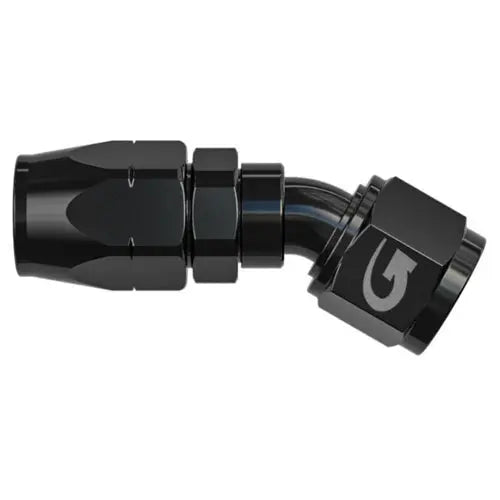

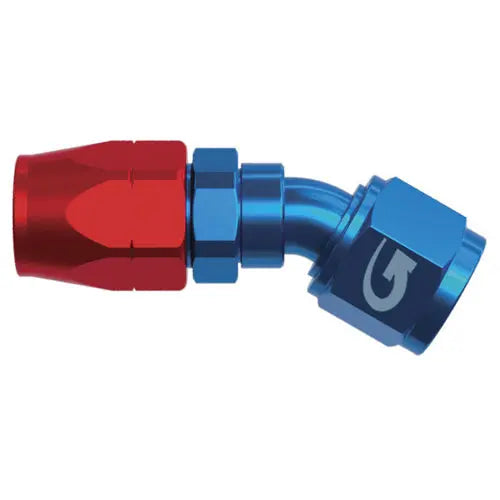

AN Koppling 200 Serie - AN 30 - AN6

<p>Goodridge 236 fittings are reusable fittings designed for use with our 200 series hose.</p> <p>The triple seal/double O-ring nitrile, cutter design ensures a secure leak free connection, easily assembled using basic hand tools.</p> <p>Our 1136 fittings use a single nipple design and are available in straight, 45 degree &amp; 90 degree options for AN-04 only.</p> <p><strong>All 1136 and 236 fitting alignments can be adjusted in situ.<br></strong></p> <p><strong>Fitting Type</strong></p> <p>Reusable</p> <p><strong>Fluid Specification</strong></p> <p>Oil, Coolant &amp; Water.</p> <p><strong>Compatible hose</strong></p> <p>200</p> <p><strong>Part No.</strong></p> <p><strong>To suit hose</strong></p> <p><strong>JIC/UNF</strong></p> <p><span><strong>236-3106/BK</strong></span></p> <p>200-06</p> <p>9/16 x 18</p> <p><span><strong>236-3108/BK</strong></span></p> <p>200-08</p> <p>3/4 x 16</p> <p><span><strong>236-3110/BK</strong></span></p> <p>200-10</p> <p>7/8 x 14</p> <p><span><strong>236-3112/BK</strong></span></p> <p>200-12</p> <p>1 1/16 x 12</p> <p><span><strong>236-3116/BK</strong></span></p> <p>200-16</p> <p>1 5/16 x 12</p>
